VLX 100 Arched / Custom Door

VLX 100 Arched / Custom Door in Hialeah Gardens, FL | Sightline Windows & Doors Hialeah Gardens

The VLX 100 Arched / Custom Door is a CNC-bent aluminum arched entryway that turns a standard opening into a curved architectural statement with real structural precision. We install this system for homeowners and builders across Hialeah Gardens who want something beyond the flat, factory-standard door. Sightline Windows & Doors Hialeah Gardens is an authorized ViewLux installation partner, which means your door arrives fabricated to order and goes in with warranty-backed workmanship that meets AAMA standards. In Hialeah Gardens, we’ve seen this door transform Mediterranean revivals, modern stucco facades, and everything between. Call (786) 321-3812 to schedule your free on-site measurement and written estimate.

Call (786) 321-3812

Product Overview - VLX 100 Arched / Custom Door

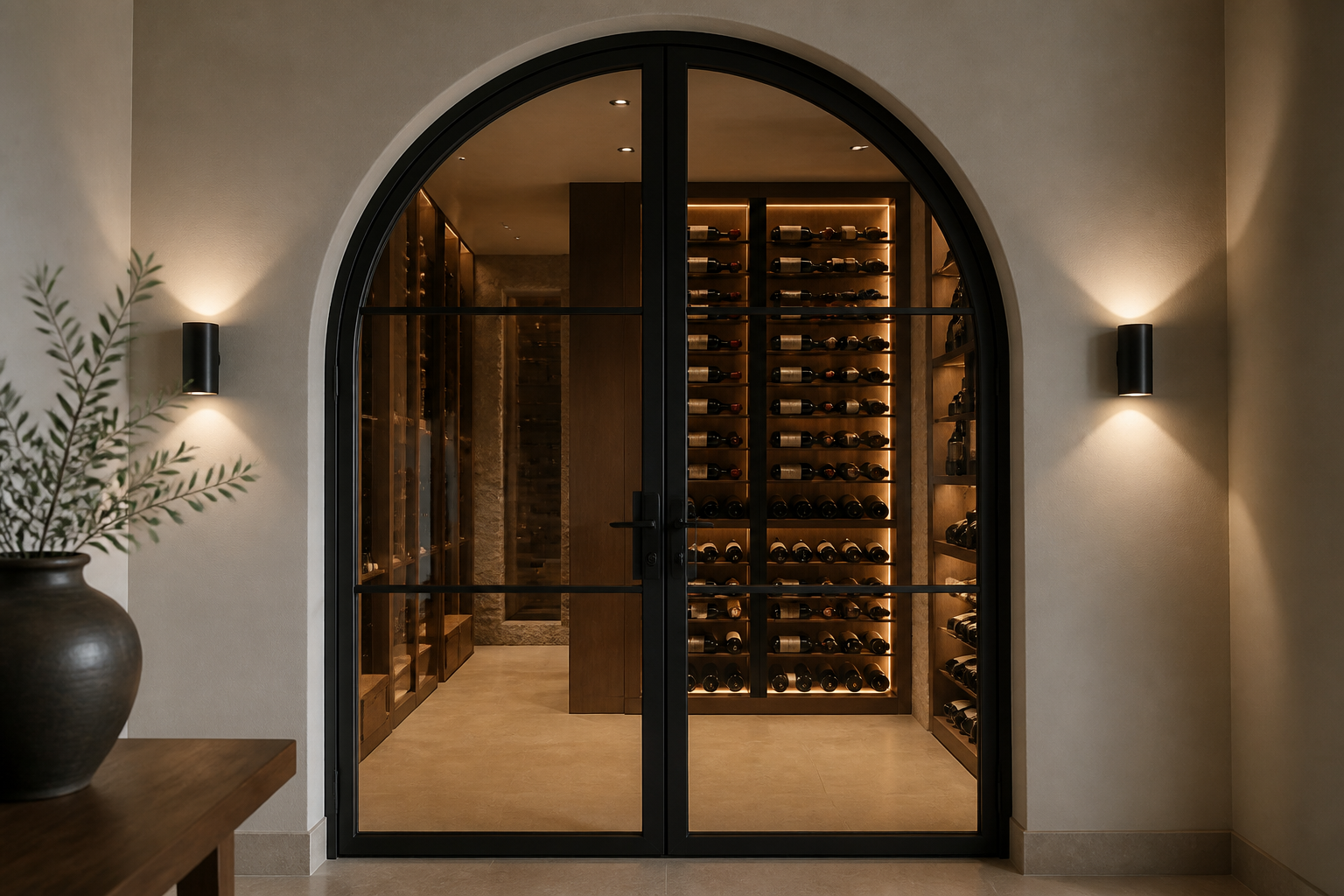

Most entry doors are rectangles. The VLX 100 Arched / Custom Door starts with a different question: what happens when the frame itself becomes the feature?

ViewLux builds this system with CNC-bent aluminum extrusions that hold their radius without warping or stress fracturing. The 0.098″ wall thickness gives the frame enough mass to feel substantial when you pull it closed, but the profile stays slim at 2.56″ wide. That narrow sightline is intentional. It keeps the visual weight on the glass and the curve, not on bulky framing.

We install the VLX 100 in Hialeah Gardens homes where the entryway sets the tone for the whole facade. Spanish-tile roofs, arched windows nearby, or a simple desire to break up a flat front elevation - those are the signals this door answers. The aluminum construction resists the salt air and humidity that wear down wood and steel entries in South Florida. And because each unit is custom fabricated to order, the span matches your opening exactly. No filler strips, no awkward compromises.

The short version: this is a curved architectural statement with structural precision, built for climates like ours and installed by a team that knows how to keep the warranty intact.

Technical Specifications

Before

After

Performance Features

Thermal Efficiency

The VLX 100 uses thermal break technology to separate interior and exterior aluminum surfaces, cutting conductive heat transfer. NFRC-rated energy performance means the numbers are verified, not claimed. In Hialeah Gardens, where summer cooling loads run high, that thermal break keeps conditioned air inside and attic heat outside.

Acoustic Performance

Multi-point compression seals and laminated glass options reduce exterior noise transmission. We’ve installed these near Palmetto Expressway corridors and under flight paths where homeowners needed real sound control, not just marketing language.

Airtightness & Weather Seal

The frame-to-wall joint gets AAMA 812 low-expansion foam sealant on all perimeter joints. That foam fills irregular gaps without distorting the frame, and it stays flexible as the structure moves through seasonal humidity cycles.

Waterproofing

Integrated sill dams, weep channels, and compression gaskets manage wind-driven rain. South Florida downpours test every entry system. The VLX 100’s drainage path is engineered, not improvised, and we verify it with a final water test before we leave your Hialeah Gardens home.

Wind Resistance

Wind-load rated for local climate requirements. That rating covers the frame, the glazing, and the anchorage. We size the fasteners and embedment depth to your specific wall construction - block, frame, or impact-rated storefront - so the assembly holds together as designed.

Security & Hardware

Multi-point locking hardware engages at the sill, the strike, and the header. Tempered and laminated glass options add impact resistance. The hardware mounting points are reinforced in the extrusion itself, not drilled through hollow tube where screws can strip out.

Color & Glass Options

Premium Black reads modern and deliberate. We see it on contemporary Hialeah Gardens homes with clean stucco and minimal trim. Pure White brightens entryways under deep overhangs where natural light is scarce. Anodized Silver has that raw aluminum honesty - it works on industrial-influenced designs and holds up without chalking.

Bronze and Champagne both bridge traditional and transitional architecture. Bronze leans warmer, pairing with terracotta roof tile and wood accents. Champagne is quieter, a neutral metallic that doesn’t fight other finishes. Teak Wood gives you the grain pattern without the maintenance liability of actual tropical hardwood in our humidity.

Glass selection depends on what the door needs to do. Clear for maximum daylight and visibility. Frosted or Obscure for privacy on street-facing entries. Low-E when solar heat gain is the enemy - which is most Hialeah Gardens afternoons. Tempered for safety code compliance and break pattern. Laminated for impact rating, sound control, and security. We’ll walk you through the tradeoffs at your free estimate.

Installation by Sightline Windows & Doors Hialeah Gardens in Hialeah Gardens

We’ve replaced enough failed doors in Hialeah Gardens to know that installation is where warranties live or die. ViewLux builds the VLX 100 to tight tolerances. If the opening isn’t square, if the frame isn’t shimmed correctly, if the perimeter foam is skipped or the wrong type, the door leaks, binds, or cracks its seal - and the manufacturer warranty is void because the installation didn’t meet AAMA standards.

Our process starts with a pre-install inspection. We measure the rough opening, check for plumb, and identify structural issues before the custom door is even ordered. Once fabrication is complete, we set the frame level, plumb, and square on composite shims that won’t compress or rot. Fastener spacing and embedment follow AAMA 2400/2410 installation standards for the wall type we’re anchoring into.

Perimeter joints get AAMA 812 low-expansion foam sealant, not generic gap filler. The foam expands to fill voids without bowing the frame, then we trim and cap with compatible sealant. After hardware and glass are set, we run a water test - spray the exterior at pressure, check the interior for penetration. We don’t leave until it passes.

Hialeah Gardens building codes require wind-load compliance for exterior doors, and our installations are documented for permit and inspection. We pull permits when required, schedule inspections, and pass them. The cleanup happens last. You’ll get a walkthrough, written documentation of the installation, and a clear explanation of your warranty coverage.

Improper installation voids the manufacturer warranty. That’s not a scare tactic - it’s the first clause in the ViewLux limited warranty. We install to protect your investment, not just to get the door in the hole.

Frequently Asked Questions - VLX 100 Arched / Custom Door

What is the lead time for the VLX 100 Arched / Custom Door?

Lead time is typically 6 to 10 weeks from final measurement and deposit, because each door is CNC-bent and fabricated to your opening dimensions. Call (786) 321-3812 to get your project on the production schedule.

Does the VLX 100 qualify for energy tax credits?

Doors with Low-E glass and NFRC-rated thermal break construction may qualify for federal energy efficiency tax credits depending on the current tax year requirements and your total installation cost. We provide the NFRC performance documentation you’ll need to claim any available credit. Call (786) 321-3812 to discuss which glass package optimizes both performance and credit eligibility.

What warranty comes with the Arched / Custom Door?

ViewLux provides a limited manufacturer warranty on the frame and finish, and Sightline Windows & Doors Hialeah Gardens backs our installation workmanship. The manufacturer warranty requires AAMA-standard installation to remain valid, which is why we document every step. Call (786) 321-3812 for the full warranty terms specific to your configuration.

Can I customize the size?

Yes - the VLX 100 is custom fabricated to order with no standard maximum span limit. We measure your rough opening, account for installation tolerances, and the factory bends the aluminum to that specification. Call (786) 321-3812 to schedule the on-site measurement that starts the custom process.

How do I maintain aluminum frames in Hialeah Gardens?

Wash the frames twice yearly with mild soap and water, check weep holes for debris after storm season, and lubricate hinges and locks annually with a silicone-based product. Avoid abrasive cleaners that scratch the anodized or painted finish. Salt buildup from our coastal air accelerates corrosion if ignored, so the rinse matters. Call (786) 321-3812 if you want us to add you to our annual maintenance check schedule.

Get a Quote - VLX 100 Arched / Custom Door in Hialeah Gardens

Ready to stop looking at flat doors? Sightline Windows & Doors Hialeah Gardens will measure your opening, confirm the structural requirements, and deliver a written line-item quote for the VLX 100 Arched / Custom Door installed to ViewLux and AAMA standards. No change orders, no surprises. Call (786) 321-3812 today to schedule your free on-site consultation in Hialeah Gardens.

Written by the team at Sightline Windows & Doors Hialeah Gardens, serving Hialeah Gardens and South Florida as an authorized ViewLux installation partner.
