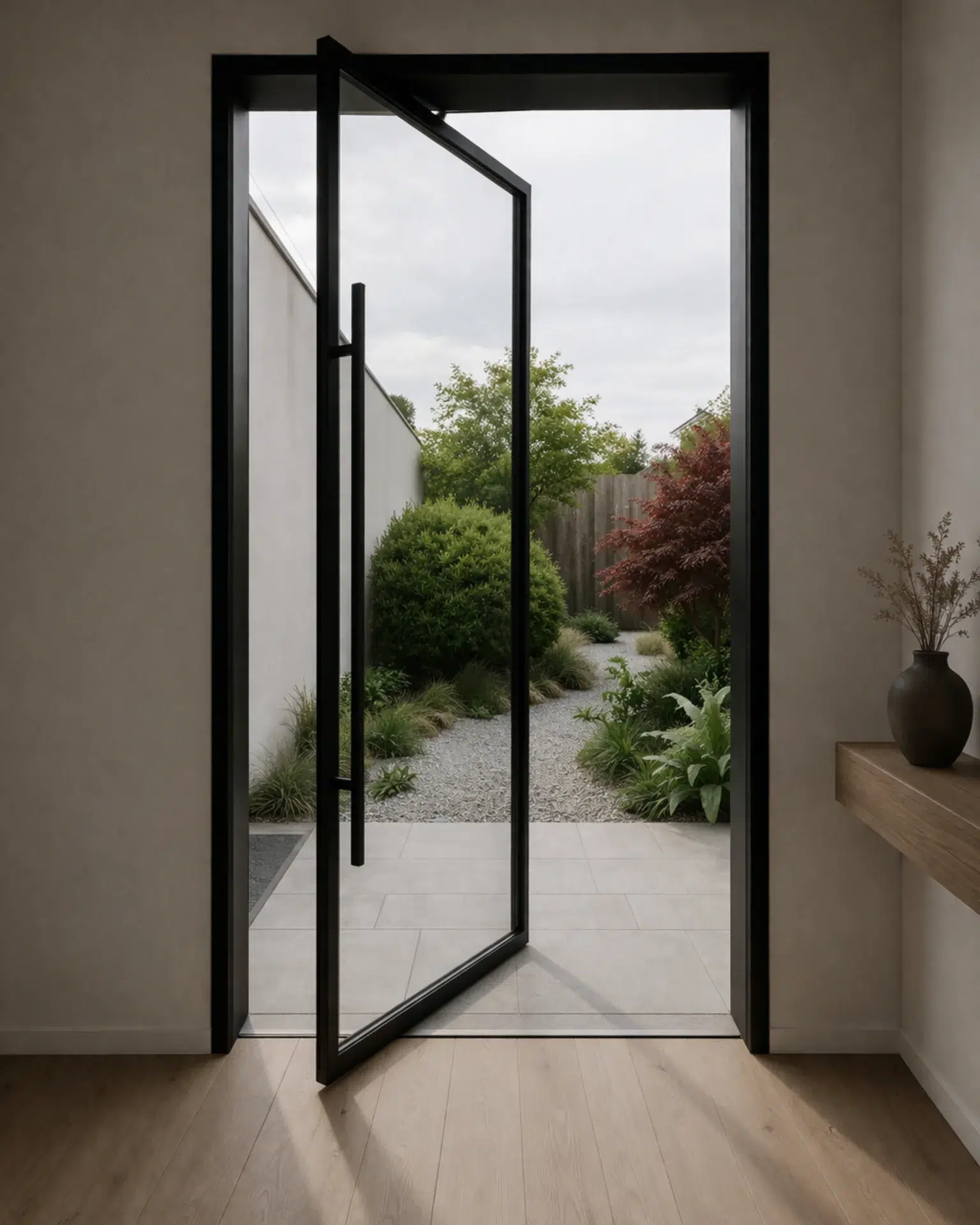

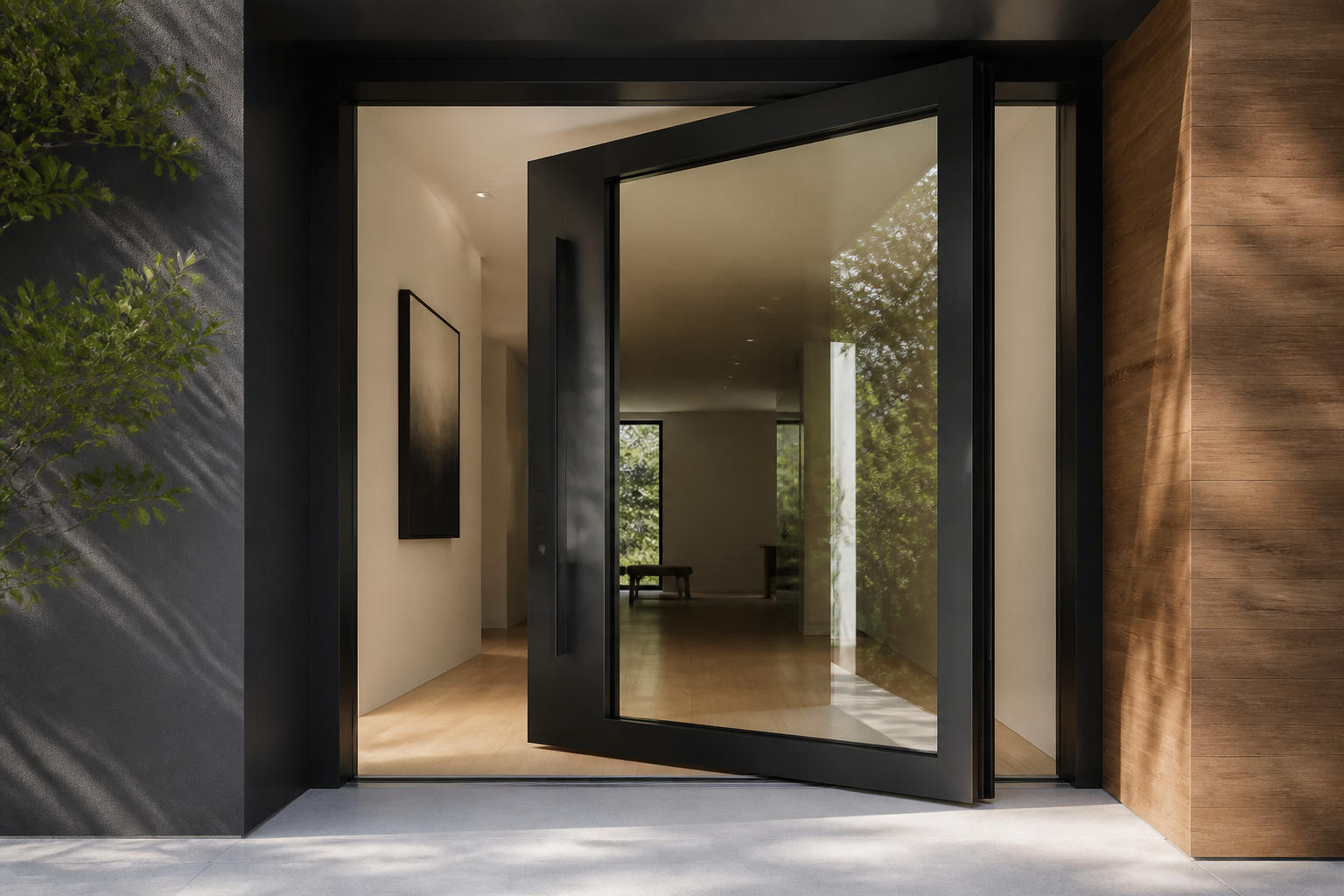

VLX 100 Pivot Door

VLX 100 Pivot Door in Hialeah Gardens, FL | Sightline Windows & Doors Hialeah Gardens

The VLX 100 Pivot Door is a heavy-duty aluminum pivot door that rotates on a vertical center axis, built for homeowners and architects who want oversized glass and a genuine architectural statement. Here in Hialeah Gardens, we’re seeing more modern builds and whole-home renovations choose this style over traditional hinged entry doors. The pivot mechanism carries weight differently, so you get dramatically larger glass panels without the swing limitations of conventional frames. Sightline Windows & Doors Hialeah Gardens is an authorized ViewLux installation partner, which means our crews train directly on this system and your warranty stays intact. We’ve installed the VLX 100 across Hialeah Gardens, from newer construction near West 68th Street to custom homes closer to Miami Lakes. If you’re pricing a pivot door for your project, call (786) 321-3812 to schedule a free on-site measurement and written quote.

Call (786) 321-3812

Product Overview - VLX 100 Pivot Door

The VLX 100 was designed around a simple idea: the door should disappear into the experience of entering a home. Instead of hanging from side-mounted hinges, this system rotates on a precision vertical axis set slightly off-center. That shift changes everything. The hardware carries the panel’s weight through the floor and head track, not the frame sides, so you can go bigger on glass and slimmer on borders.

We install this door for clients who want their entryway to read as glass first, frame second. The 0.098″ wall thickness aluminum extrusion is substantial enough for South Florida’s demands without looking industrial. In Hialeah Gardens, where mid-century ranch renovations sit beside newer Mediterranean-influenced builds, the VLX 100 bridges styles cleanly. Modern installations tend toward the black or anodized finishes; traditional homes often land on bronze or the teak wood grain option.

The engineering is purpose-built for coastal conditions. Thermal break construction separates interior and exterior aluminum surfaces to reduce heat transfer. The track system is self-draining. Hardware is stainless and sealed. This isn’t a retrofit kit adapted from standard door parts; ViewLux developed the VLX series specifically for oversized pivot applications, and Sightline Windows & Doors Hialeah Gardens installs it exactly to their specification.

Technical Specifications

Before

After

Performance Features

Thermal Efficiency
The VLX 100 uses a full thermal break that separates the interior and exterior aluminum surfaces with a low-conductivity barrier. This isn’t just a comfort feature in Hialeah Gardens summers; it’s an NFRC-rated energy performance system that reduces cooling load. We pair this with Low-E glass options to reflect infrared heat while maintaining visible light transmission.

Acoustic Performance
The same perimeter sealing system that blocks water and air also dampens sound transmission. Multi-point compression hardware pulls the panel tight against dual durometer gaskets when closed. For homes near Palmetto Expressway or Okeechobee Road traffic corridors, we recommend laminated glass for additional STC improvement.

Airtightness & Weather Seal
Every VLX 100 we install gets AAMA 812 low-expansion foam sealant at all perimeter joints between frame and rough opening. The foam expands to fill irregular gaps without distorting the frame, then the gasket system takes over for long-term compression seal. This two-stage approach handles the seasonal movement we see in Hialeah Gardens construction.

Waterproofing
The sill profile is self-draining with internal weep channels. Water that reaches the track exits to the exterior face, not the interior. We verify slope and drainage plane continuity during pre-install inspection because even the best door fails if water pools at the sill. Our crews water-test every completed installation.

Wind Resistance
The VLX 100 is wind-load rated for local climate requirements. The pivot hardware anchors through the subfloor into structural framing, so the load path goes straight down rather than relying on jamb screws alone. For Hialeah Gardens, this matters during summer storm season and for homes in higher exposure zones.

Security & Hardware
Multi-point locking engages at the top, bottom, and center of the panel edge. The pivot mechanism itself is concealed and tamper-resistant. We can configure the VLX 100 with keyed cylinders, electronic access integration, or flush pull handles depending on your security needs and design preference.

Color & Glass Options

Premium Black is the finish we specify most often for contemporary Hialeah Gardens homes. It reads as architectural, not decorative, and pairs well with the dark window frames that are standard on new construction in the area. Pure White works for coastal-inspired exteriors and interiors where you want the door to recede visually.

Anodized Silver has a metallic depth that suits mid-century renovations; we’ve used it on several homes near Hialeah Gardens’ older neighborhoods where original aluminum windows set the material palette. Bronze warms up traditional stucco and works with terracotta roof tile. Champagne splits the difference, subtle enough for transitional designs. Teak Wood grain finish gives you the warmth of wood appearance with aluminum’s maintenance profile, popular for homes with existing wood accents.

Glass selection depends on privacy, energy, and safety priorities. Clear maximizes views and daylight. Frosted and Obscure provide privacy without sacrificing brightness, good for entries facing neighboring homes closely. Low-E is our default recommendation for Hialeah Gardens; the solar heat gain coefficient improvement pays back quickly. Tempered meets standard safety code. Laminated adds impact resistance and sound damping, and it’s the required choice for HVHZ (High Velocity Hurricane Zone) compliance when specified.

Installation by Sightline Windows & Doors Hialeah Gardens in Hialeah Gardens

We don’t subcontract pivot door installations. Our crews are trained on the VLX 100 specifically, and we follow ViewLux’s installation protocol start to finish. The process begins with a pre-install inspection of your rough opening: we check square, level, plumb, and structural integrity of the header and subfloor. Pivot doors transfer load differently than hinged doors; the floor and head anchors must hit solid framing. If the opening needs correction, we address it before the door arrives.

Setting the frame follows AAMA 2400/2410 installation standards. We shim, anchor, and brace the frame without distorting it, then apply AAMA 812 low-expansion foam sealant at all perimeter joints. The foam fills gaps that caulk alone can’t reach and maintains its seal through seasonal expansion and contraction. After hardware installation and panel hanging, we adjust pivot tension, check sweep contact, and verify lock engagement at all points.

Every installation closes with a water test and operational check. We clean the site and walk you through operation, maintenance, and warranty documentation.

Here’s what Hialeah Gardens homeowners need to understand: improper installation voids the manufacturer warranty. ViewLux requires authorized partner installation for full coverage, and for good reason. We’ve seen doors set out-of-square that stressed the pivot mechanism, frames shimmed with rigid materials that transmitted vibration, and perimeter gaps stuffed with backer rod instead of proper foam sealant. Those shortcuts show up later as operation problems, air infiltration, or water intrusion. Our AAMA-standard installation protects your investment and keeps your warranty valid.

Hialeah Gardens’ climate specifics matter too. Our summer humidity and rainfall test seals year-round. The salt air influence from Biscayne Bay, though moderate here compared to beachfront, still favors anodized or properly coated finishes over bare aluminum. We factor these conditions into our recommendations.

Frequently Asked Questions - VLX 100 Pivot Door

What is the lead time for the VLX 100 Pivot Door?
Lead time typically runs 6-10 weeks from final measurement and deposit, depending on glass and finish selection. Custom sizes within the maximum 60″ × 120″ range don’t add time; specialty glass or finish matching may extend by 2-3 weeks. Call (786) 321-3812 to check current production schedules for your configuration.

Does the VLX 100 qualify for energy tax credits?
The VLX 100 with Low-E glass and thermal break construction meets NFRC energy performance standards that may contribute to federal or state energy efficiency credits depending on the full assembly configuration and your tax situation. We provide NFRC labels and performance documentation for your accountant; we don’t give tax advice. Call (786) 321-3812 to discuss qualifying glass packages.

What warranty comes with the Pivot Door?
ViewLux provides a limited lifetime warranty on the aluminum frame and hardware, with glass coverage varying by type selected. Full warranty terms require installation by an authorized partner like Sightline Windows & Doors Hialeah Gardens. Our workmanship is warrantied separately for five years. Call (786) 321-3812 for complete warranty documents before you buy.

Can I customize the size?
Yes, within the maximum 60″ width and 120″ height. We measure your opening and specify the exact panel and frame dimensions to fit. Aspect ratios outside ViewLux’s engineered range may require design consultation to maintain proper pivot operation. Call (786) 321-3812 to schedule a free measurement and feasibility review.

How do I maintain aluminum frames?
Wash frames twice yearly with mild soap and water, rinse thoroughly, and check weep holes for debris. Lubricate pivot hardware annually with a silicone-based product. Avoid abrasive cleaners or pressure washers directed at gasket edges. In Hialeah Gardens, we recommend checking the sill track after storm season for accumulated grit. Call (786) 321-3812 if operation changes; early adjustment prevents wear.

Get a Quote - VLX 100 Pivot Door in Hialeah Gardens

Ready to see how a VLX 100 Pivot Door would work for your Hialeah Gardens home? We’ll measure your opening, review finish and glass options, and deliver a written line-item quote with no pressure to decide on the spot. Every project starts with a conversation. Call (786) 321-3812 or stop by to schedule your free estimate.

Written by the team at Sightline Windows & Doors Hialeah Gardens, serving Hialeah Gardens since 2015.
